Ricoh – MH5421F GEN5 Printhead
This Ricoh printhead offers high-resolution printing and support for multiple ink colours with multi-row nozzles, as well as enhanced aqueous ink compatibility with new bonding technology.
$3,083.21
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
This MH5421 Ricoh printhead offers high-resolution, print and supports for multiple ink colors with multi-row nozzles also enhanced aqueous ink compatibility with new bonding technology.
Product Specifications
| RICOH MH5421F | RICOH MH5421MF | |
| Method | Piston pusher with metallic diaphragm plate | |
| Ink circulation structure | ○ | |
| Print width | 54.1mm | |
| Number of nozzles | 1280 (4 x 320 channels), staggered | |
| Nozzle spacing | 1/150″ (0.1693mm) | |

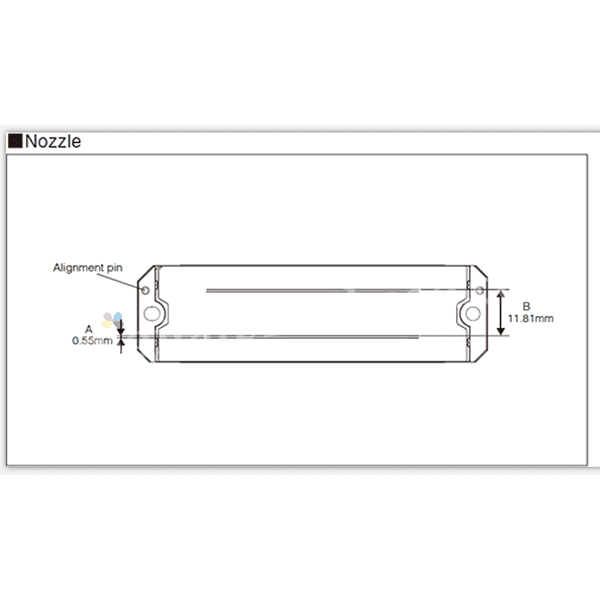

| Nozzle spacing (Row to row distance) | A : 0.55mm B : 11.81mm (See illustration below) | |
| Max. number of color inks | 2colors | |
| Compatible ink | UV, Solvent, Aqueous, others | |
| Operating temperature range | Up to 60℃ | |
| Temperature control | Integrated heater and thermistor | |
| Jetting frequency | 30kHz | |
| Drop volume | 7/14/21pl (depending on the ink) | |
| Viscosity range F/MF | 11mPa・s | 6mPa・s |
| Gray-scale | 4levels (depending on the ink characteristic) | |
| Separately sold parts | RICOH MH5421F / MH5421MF dedicated cable | |

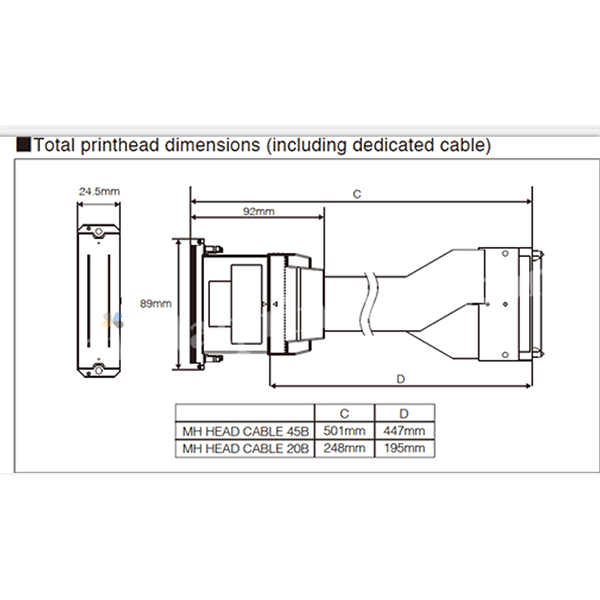

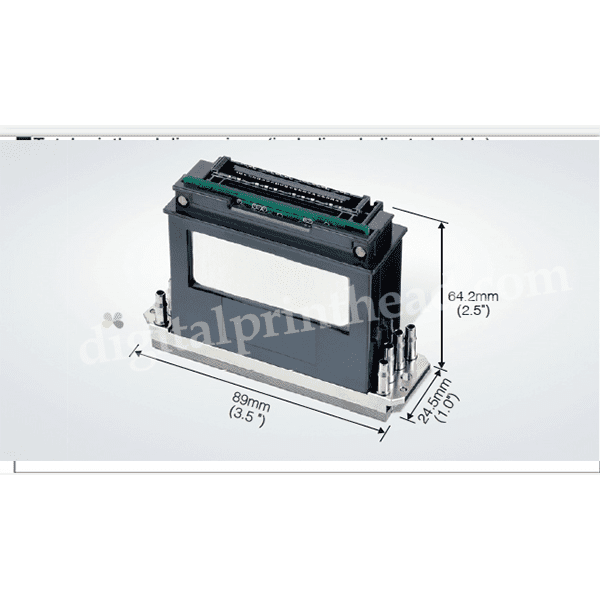

| Total printhead dimensions. | 89(W) × 64.2(D) × 24.5(H) mm (3.5″ × 2.7″ × 1.0″) | |
| Weight | 149g | |
| Weight | 1.1 kg |
|---|---|
| Dimensions | 40 × 20 × 10 cm |
| Printhead brands | Ricoh |
