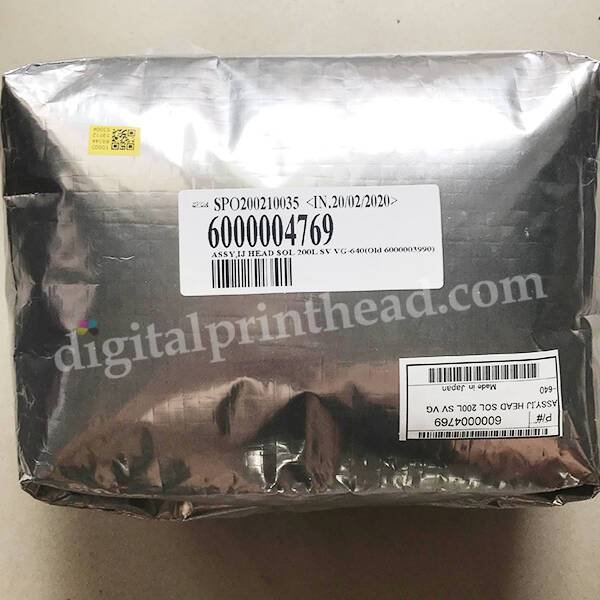

VG-SG Assy Inkjet Head 200L – 6000004769 NEW PART CODE 6000002330 / 6000004770

This printhead set is suitable for Roland Truevis VG-640/540 (with a serial number starting with Z*** or K***) & SG-300/540 printers. This is the original Roland part (number 6000003990 replacing 6000003077-1 & 6000002330).

Technical Specifications

• Size: 61.8(W) × 40.5(D) × 23.3(H) mm (2.43″ × 1.59″ × 0.92″)
• Number of Nozzles: 384
• Nozzle spacing (Within a row): 0,1693 mm/row
• Nozzle spacing (Row to row distance): 0.931 mm
• Method: Piston pusher with metallic diaphragm plate
• Temperature Control: No heater or thermistor
• Drop volume: Binary mode : 3-5pl / Grey-scale mode : 21±2pl
• *depending on the ink
• Jetting Frequency: Binary mode : 30kHz / Grey-scale mode : 24kHz
• Life: 30 billion actuations per nozzle
• Compatible ink: Aqueous, Solvent

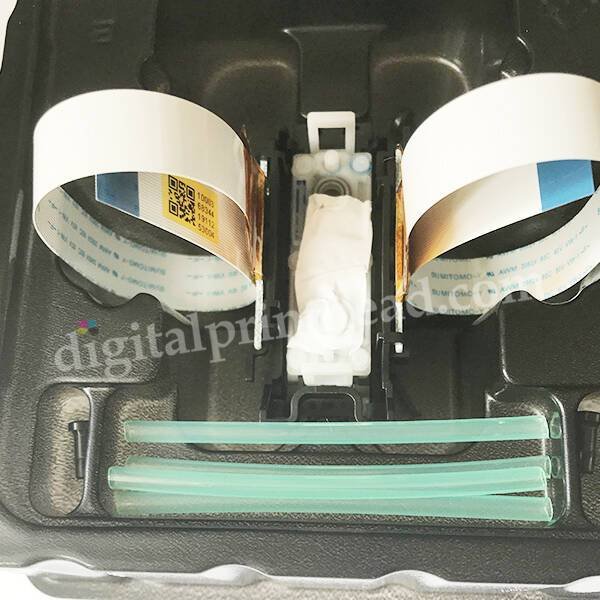

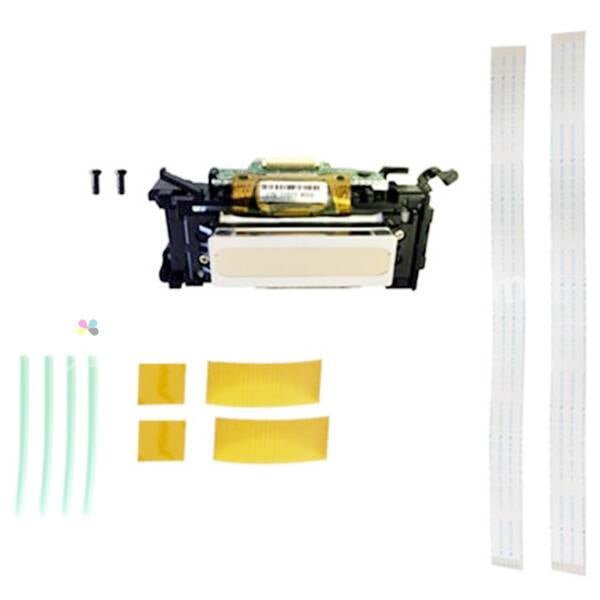

This set includes:

• 1x head
• 1x fixing tape
• 1x 200mm long head data cable + plastic shields
• 1x head tube
