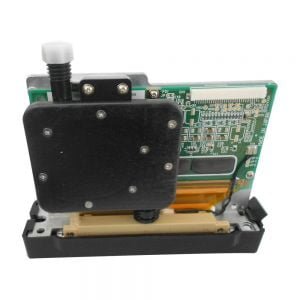

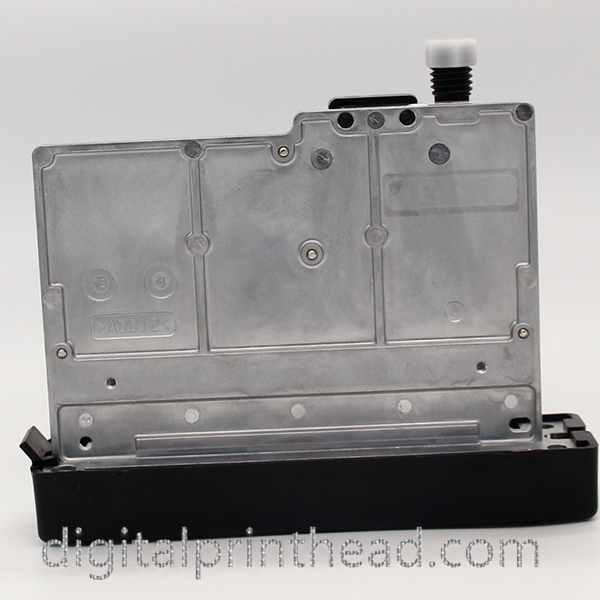

Seiko SPT-510 35pl Printhead RH1513D-3322
- Compatible Ink: Oil / UV / Solvent● Number of Active Nozzles: 510● Nozzle Pitch: 141.1[um] (Approx.1/180 [inch])● Active Printing Width: Approx. 71.8 [mm]
● Native resolution: 180 dpi
● Jetting Frequency: 7 [kHz] (depending on ink and ink system)
● Drop Volume: 35 [pl] and 80 [pl] versions available
● Driving Interface: Parallel Interface
● Dimensions (W*H*D): 126,3 x 99,2 x 32,9 [mm]
● Dry Weight: 200 [g]
$774.64 $835.00
8 in stock
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
- Seiko Printhead
Seiko SPT-510 35pl Printhead RH1513D-3322
- Compatible Ink: Oil / UV / Solvent● Number of Active Nozzles: 510● Nozzle Pitch: 141.1[um] (Approx.1/180 [inch])● Active Printing Width: Approx. 71.8 [mm]
● Native resolution: 180 dpi
● Jetting Frequency: 7 [kHz] (depending on ink and ink system)
● Drop Volume: 35 [pl] and 80 [pl] versions available
● Driving Interface: Parallel Interface
● Dimensions (W*H*D): 126,3 x 99,2 x 32,9 [mm]
● Dry Weight: 200 [g]
SKU: PT-SPT-510-35PL - Compatible Ink: Oil / UV / Solvent● Number of Active Nozzles: 510● Nozzle Pitch: 141.1[um] (Approx.1/180 [inch])● Active Printing Width: Approx. 71.8 [mm]
- Digital Printhead, Ricoh Printhead

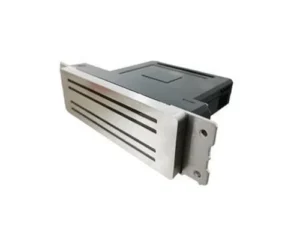

Ricoh-MH5420 GEN5 Printhead Water/UV/Solvent
- This GEN5 UV printhead is suitable for a range of UV and Solvent printers.
- It supports up to four colours and has a total of 1.280 nozzles.
- It is built with longevity and robustness in mind and used in the latest industrial inkjet printers.
- This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty.
- This Ricoh GEN5 is available in two different cable lengths (connector not included): 140mm or 390mm.
SKU: PT-RC-GEN5-MH5420
$4,990.98 for 3 item(s)
The Seiko SPT510 drop on demand piezo print head is compatible with a wide-range of grand-format digital printers, including Infiniti printers FY 3206. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (35 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common 128 print heads.
Features :
● Compatible Ink: Oil / UV / Solvent
● Number of Active Nozzles: 510
● Nozzle Pitch: 141.1[um] (Approx.1/180 [inch])
● Active Printing Width: Approx. 71.8 [mm]
● Native resolution: 180 dpi
● Jetting Frequency: 7 [kHz] (depending on ink and ink system)
● Drop Volume: 35 [pl] and 80 [pl] versions available
● Driving Interface: Parallel Interface
● Dimensions (W*H*D): 126,3 x 99,2 x 32,9 [mm]
● Dry Weight: 200 [g]
● Easy printhead Positioning: Datum points for X, Y and Z
● Print head Orientation: Downward, Horizontal and Vertical
● Ink Priming: by positive / negative pressure
● Heater: Individual heater element can be attached on the printhead
COMPATIBLE MACHINES :
Ataline
UD-1806G
UD-2506G
Azon
AG 3200
CrystalJet
6000 Series
Gongzheng
GZHS-3204DS
GZK-3206-AS
GZK-3208-AS
Icontek
Orionjet-GZE1806S
TW-3306HZ
TW-3308HZ
Infiniti
Challenger FY-3204H
Challenger FY-3206S
Challenger FY-3208G
Challenger FY-3208H
Challenger FY-3208HF
Challenger FY-5008GS
ZHONGYE
ZY-6800
ZY-5300
ZY-3400
ZY-3200
ZY-2500
ZY-2000
ZY-FB Series large format printers with Seiko SPT-510 / 35PL
Myjet
3208
Speedvision
SpeedJet Pro 180
SpeedJet Pro 250
SpeedJet Pro 320
VUTEk
QS2000
QS220
QS3200
QS3220
Zhongye
SK-1604
| Weight | 2 kg |
|---|---|
| Dimensions | 20 × 20 × 15 cm |
| Printhead brands | Seiko |
Technical Specifications
Model | SPT510 print head | ||
Number of nozzles | 510 | ||
Native resolution | 180 dpi | ||
Max. resolution | 720dpi | ||
Drop size | 35pl/50pl | ||
Type of ink | Solvent ink | ||
Printhead type | solvent printhead | ||
Firing frequency | 6.46 or 8.29 Khz | ||
Print swathe width | 71.8mm(2.8inchs) | ||
Nozzle density (nozzles per inch) | 185 npi | ||
Place of origin | Japan | ||
Feature | 100% original | ||
