MIMAKI JV4 PRINTHEAD DX4 WATER BASE PRINTHEAD ROLAND FJ740 PRINTHEAD

The Epson DX4 water-based printhead is suitable for Roland, Mutoh, and Mimaki water-based printers. The Epson DX4 printhead has a native resolution of 360 dpi, 2 nozzle lines (corresponding with 2 independent ink channels), and 180 nozzles per line.

The Epson DX4 (fourth-generation micro-piezo printhead) has a typical firing frequency of 8 kHz, a minimum droplet size of 3.5 picolitres,s and is used for either 1 color through both channels or 2 colors through the independent channels.

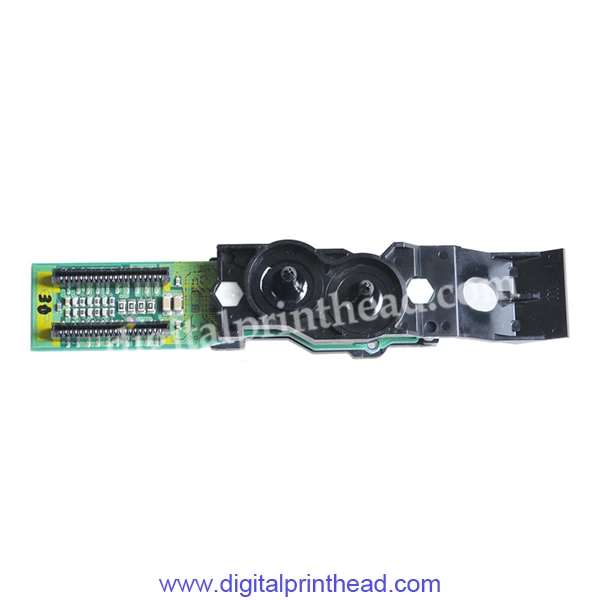

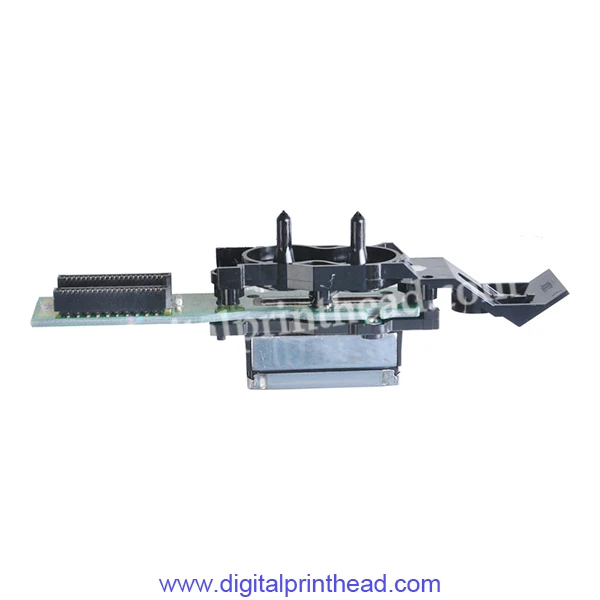

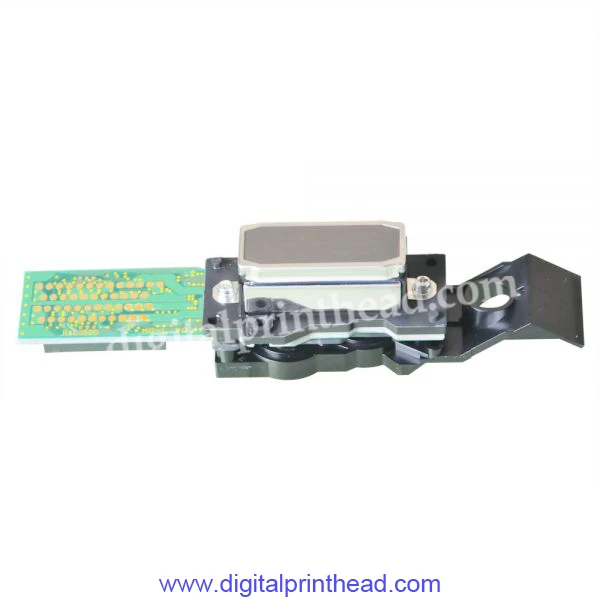

The Epson DX4 water-based printhead is the most popular head used for water-based wide format printing applications. This is the original Epson DX4 water-based printhead, delivered in a sealed Epson original package (Roland part number 6811909060, Mimaki part number M004372, Mutoh part number DF-49029). This printhead is compatible with a wide range of printers as specified in the printer compatibility.

Product Specifications

• Technology: Micro-Piezo
• Native resolution: 360 dpi
• Min. droplet size: 3.5 picolitre
• Tot. amount of nozzles: 360 (2 lines x 180 nozzles)
• Firing frequency: 8 kHz
• Ink Compatibility: water-based dye and pigment inks

It is highly recommended to replace the head cables together with a new printhead.
