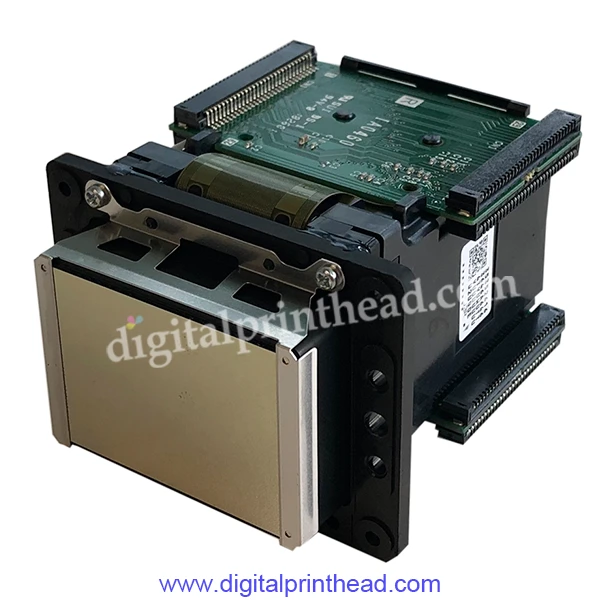

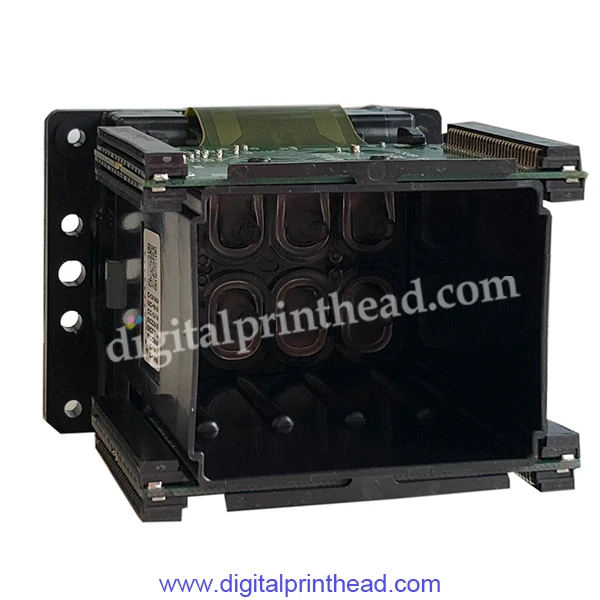

MIMAKI JV34-260 TS34-1800A PRINT HEAD – PART CODE M010792

This printhead assy is suitable for the Mimaki JV34-260 printers. The JV34-260 Printhead ID Set has a native resolution of 360 dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.

The JV34-260 Printhead ID Set can be used in 4-colour or 8-colour printers and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for the JV34-260 Printhead ID Set is 8 kHz.

The JV34-260 Printhead ID Set solvent printhead is based upon the most recent Epson technology. This is the original Mimaki part (number M010792).

Product Specifications:

• Technology: Micro-Piezo
• Native resolution: 360 dpi
• Min. Droplet Size: 1.5 picolitre
• Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
• Firing Frequency: 8 kHz
• Ink Compatibility: eco-solvent and mild solvent
• Damper type: requires DX6 Valve Dampers

It is highly recommended to replace the head cables together with a new printhead.
