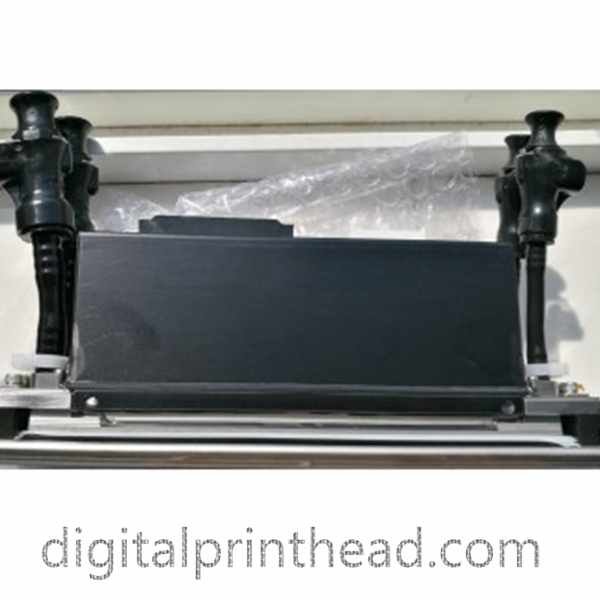

KYOCERA KJ4A-AA INKJET PRINTHEAD
- Ink Type: UV ink
- Dimensions: 200 × 25 × 59.3 mm
- Dry Weight: 540g
- Total Nozzles: 2.656 (2x 1328)
- Standard Resolution: 600 x 600 dpi
- Print Width: 108.25 mm
$4,413.50 $5,999.00
17 in stock
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
- Epson Printhead, Mutoh Printhead
ORIGINAL MUTOH VJ-1604 PRINT HEAD ASSY – DF-49684
- The original VJ-1604 printhead is suitable for the Mutoh ValueJet printer series.
- The VJ-1604 printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.
- The VJ-1604 printhead is either used in 4-colours (2 channels per colour) and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz.
- This VJ-1604 printhead is suitable for Mutoh ValueJet printer series printers.
- Mutoh part number for this print head is DF-49684.
SKU: PT-EP-MT-DX5 - Digital Printhead, Kyocera Printhead
KYOCERA KJ4A-0300 INKJET PRINTHEAD 300Dpi – 30kHz – For UV ink
-12%
Digital Printhead, Kyocera PrintheadKYOCERA KJ4A-0300 INKJET PRINTHEAD 300Dpi – 30kHz – For UV ink
- This new generation Kyocera KJ4A-0300 is designed for high speed single-pass applications with printers using aqueous ink.
- It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz.
- It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swath
SKU: PT-KY-KJ4A-0300
$9,521.93 for 3 item(s)
This new generation Kyocera KJ4A-TA is designed for high-speed single-pass applications with printers using UV ink. It is a 600dpi two colors printhead with a maximum drive frequency of 20kHz. It delivers high quality with a small drop volume of 3pl at 158 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe.
Specifications
- Ink Type: UV ink
- Dimensions: 200 × 25 × 59.3 mm
- Dry Weight: 540g
- Total Nozzles: 2.656 (2x 1328)
- Standard Resolution: 600 x 600 dpi
- Print Width: 108.25 mm
- Max. Drive Frequency: 20kHz
- Drop Volume: 3,6 & 13PL
- Max. Sprint Speed: 50 m/min
- Typical ink viscosity: 6.0-6.5 mPa
Applications for KJ4AA: Offset Surprint, Sign Graphics, and Labels.
| Weight | 2.5 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
| Printhead brands | Kyocera |
