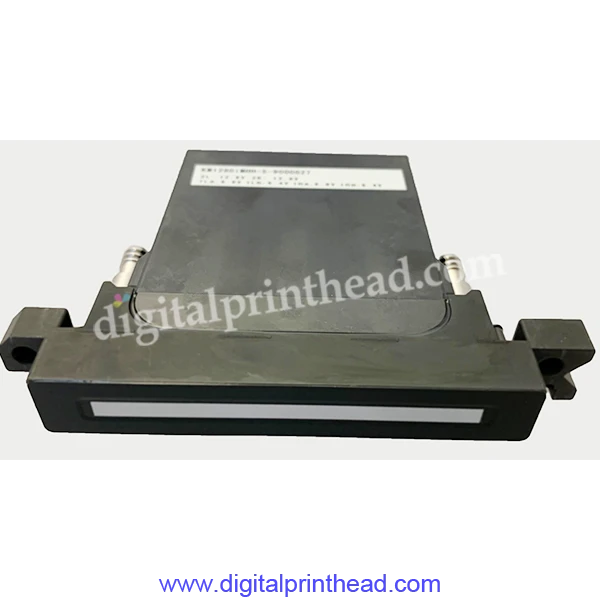

Konica Minolta KM1280iMHH-Si Printhead
$7,777.00
Out of stock
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
The KM1280iMHH Printhead is
- 45kHz shear mode actuation and native 450 dpi resolution over 72mm print swathe.
- Simple to integrate, tough and reliable with good fluid compatibility.
- Designed to be used in high-quality print systems with UV inks.
- Using proven bulk piezoelectric technology to deliver 10pl drop volumes at 450 dpi resolution in a narrow 17.6mm footprint.
- Designed to be operated in a wide range of different orientations. The printhead is suitable for use with recirculating ink systems for example for white or metallic inks. printheads can be used in binary or greyscale (3bit) modes.
- Fitted with a silicone nozzle plate for increased jetting accuracy.
A fast and reliable solution for applications requiring high quality
- Coding and marking
- Packaging applications
- Plastic card decoration
- Security applications
- Printed electronics
- Direct to shape
| Available ink types | UV/ Solvent |
| Technology | Independent channel, on-demand piezo |
| Number of nozzles | 1280 (320 x 4 rows) |
| Channel resolution | 56.4μm pitch (450 dpi: 4 rows x 112.5 dpi) |
| Grey scale | 8 levels |
| Typical frequency | 40kHz |
| Drive voltage | 18 +/- 3V |
| Printing width | 72.25 mm |
| Overall row spacing | 2.95 mm |
| Drop velocity | 6.0 m/sec |
| Dimensions | Height 104.5 mm x Width 17.6 mm x Length 131 mm |
| Weight | Less than 205 gm |
| Drop size | 10pl |
| Max frequency | 45kHz |
| Weight | 1.6 kg |
|---|---|
| Dimensions | 30 × 30 × 25 cm |
| Printhead brands | Konica |
