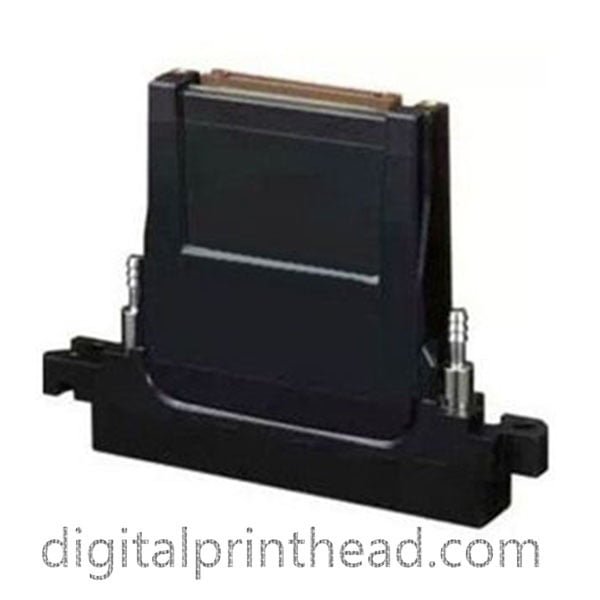

Konica Minolta KM1024i SHE 6PL Printhead

The high-density structure of Konica Minolta KM1024i SHE 6PL Printheadfeaturing 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i SHE printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

Environmentally-considerate Approved Green Product

Konica Minolta KM1024i SHE 6PL Printhead printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series.

Specifications
• Technology: Piezo Drop-On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 6 pl
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Typical Firing Frequency: 50 kHz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: UV Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

Used on machine:

Agfa: Anapurna 100, Anapurna H2500i LED, Anapurna M2050i, Anapurna M2500i, Anapurna M3200i
Allwin: S320UV, S500UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512
Docan: H1000
Flora: HJ 5000UV
Human Digital Technology: M-JET
IIJ: ColourPrint-72
JHF Vista: R3300, R6000, V300UV, V500UV
Optimum Digital: KR Hybrid UV
Skyjet: FT2512i, FT3020i
