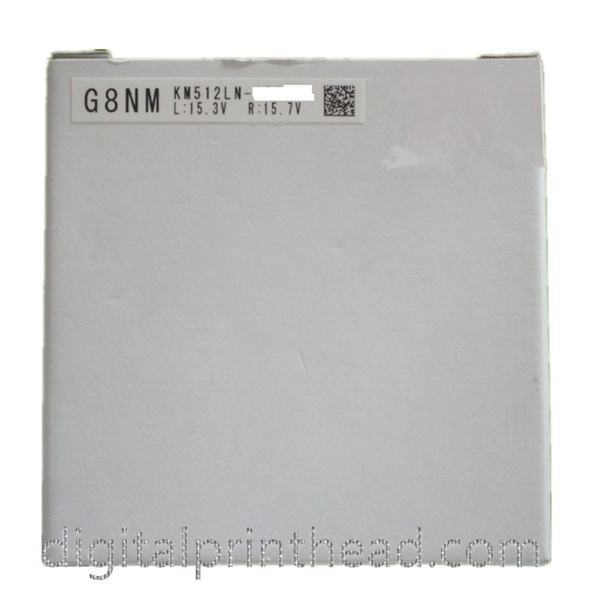

KONICA KM512 LN 42PL
- The Konica Minolta KM512 LN printhead is a robust print head , shear mode, piezo on-demand printhead that is usable in binary mode only.
- The Konica Minolta KM512 LN printhead has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi.
- It is compatible with oil based, solvent and UV inks. This printhead is also known as the Konica Minolta KM512 LNX.
- This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty.
$920.00
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
- Konica Printhead
KONICA KM512 LN 42PL
- The Konica Minolta KM512 LN printhead is a robust print head , shear mode, piezo on-demand printhead that is usable in binary mode only.
- The Konica Minolta KM512 LN printhead has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi.
- It is compatible with oil based, solvent and UV inks. This printhead is also known as the Konica Minolta KM512 LNX.
- This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty.
SKU: PT-KM512-LN-42PL - FuJiFilm Dimatix Printhead, Starfire Printhead
STARFIRE™ SG1024/SA 10PL PRINTHEAD
- Incorporate VersaDrop™ binary and grayscale jetting
- Continuous ink recirculation with RediJet™
- Two colors operation
- Print Width: 64.96 mm [2.55 in.]
- Nominal Drop Size: 30 picoliter
- Adj. The range for Droplet Size: 30 to 80 picoliter
SKU: PT-SF-SG1024-SA
$4,909.00 for 2 item(s)
The Konica Minolta KM512 LN printhead is a robust print head , shear mode, piezo on-demand printhead that is usable in binary mode only. The Konica Minolta KM512 LN printhead has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks. This printhead is also known as the Konica Minolta KM512 LNX. This is Konica original print head and it includes the Head ID and the necessary waveform information. It carries a product warranty.
On the Agfa :Anapurna Mv and :Anapurna Mw printers, the KM512 LN 42PL is used for Varnish (Mv) or White Ink (Mw). For all other colours, PPHKM512MN is used.
Specifications
- Technology: On-Demand Piezo Electric
- Native Resolution: 360 dpi
- Cal. Droplet Size: 42 pico litre
- Tot. Amount of Nozzles: 512 (256 nozzles per line)
- Nozzle Spacing: 70.5 microns
- Print Width: 36.1 mm
- Firing Frequency: 7.6 kHz
- Ink Compatibility: Oil Based, Solvent and UV Inks
- Heater: not integrated
COMPATIBLE PRINTERS :
Aestrik
- InWear S3304K5
- InWear S3308K5
Agfa
- Anapurna Mv
- Anapurna Mw
Allwin
- C12
- C8
Dilli
- Neo Titan UVT-1606W
DYSS
- Apollo PTP18/3202-KC
- Apollo PTP18/3204-KC
- Apollo PTP18/3206-KC
- Apollo PTP1804-KL
- Apollo PTP1806-KL
- Apollo PTP1808-KL
- Apollo PTP3204-KL
- Apollo PTP3206-KL
- Apollo PTP3208-KL
- Apollo PZ 3208-KX
- Apollo PZ3204-KX
- Apollo PZ3206-KX
Icontek
- 3306
JHF Vista
- 2506
- H8 3304F
- H8 3306F
- H8 3308F
- S5004F
- S5006FS
Myjet
- LB320
- LE320
- WB320
Rodin
- K4320-A
- K4320-B
Skynet
- HS-Series
- PC-Series
Taimes
- T5
- T7
| Weight | 1.5 kg |
|---|---|
| Dimensions | 25 × 25 × 20 cm |
| Printhead brands | Konica |
