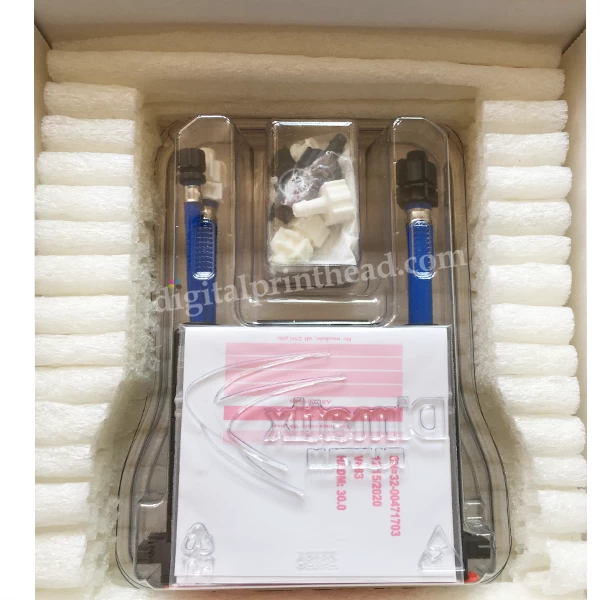

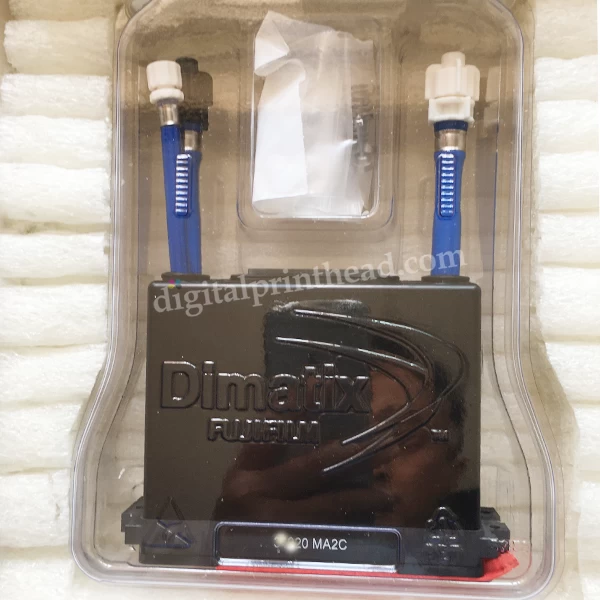

DIMATIX STARFIRE™ SG1024/MA-2C PRINTHEAD SG1024MA2C PRINTHEAD
Specifications
– Incorporate VersaDrop™ binary and grayscale jetting
– Continuous ink recirculation with RediJet™
– Two colors operation
– Print Width: 64.96 mm [2.55 in.]
– Nominal Drop Size: 30 picoliter
– Adj. The range for Droplet Size: 30 to 80 picoliter
– Tot. Amount of Nozzles: 1024 (two separate ink paths each with 512 independent channels)
– Nozzle Spacing: 0.0635 mm [0.0025 in.]
– Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.
– Resolution: Up to 200 dpi
– Operating Temperature: up to 55°C
– Ink Compatibility: UV-curable, organic solvents, and aqueous inks
$2,923.00 $3,630.00
Your order will be shipped out in 24 hours when it is available in stock.
The default shipping way is DHL or FedEx express.
If you enquire more quantity. please send email to : sales@digitalprinthead.com
Share:
Specifications
– Incorporate VersaDrop™ binary and grayscale jetting
– Continuous ink recirculation with RediJet™
– Two colors operation
– Print Width: 64.96 mm [2.55 in.]
– Nominal Drop Size: 30 picoliter
– Adj. The range for Droplet Size: 30 to 80 picoliter
– Tot. Amount of Nozzles: 1024 (two separate ink paths each with 512 independent channels)
– Nozzle Spacing: 0.0635 mm [0.0025 in.]
– Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.
– Resolution: Up to 200 dpi
– Operating Temperature: up to 55°C
– Ink Compatibility: UV-curable, organic solvents, and aqueous inks
COMPATIBLE PRINTERS :
AOjet
- H3204SG
Flora
- LJ320SG
Gongzheng
- StormJet GZM3202SG
- StormJet GZM3204SG
Mehta
- GZX2002
SmartJet
- Smart S-2h/4h
Wit-Color
- SF 1902
- SF 1904
- SFP 1804
- SFP 1808
- Ultra Star 3302
- Ultra Star 3304
- Ultra Star 3308
- Ultra Star 5304
- Ultra Star 5308
Worldwide Digital
- Star Cruze 3204
Yueda
- YD1800-XE
| Weight | 1.2 kg |
|---|---|
| Dimensions | 40 × 30 × 20 cm |
| Printhead brands | Dimatix, Starfire |
