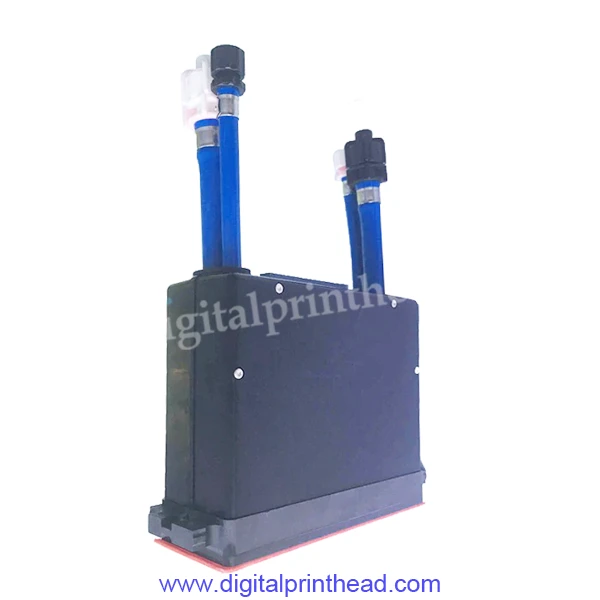

DIMATIX STARFIRE SG1024/LA2CI PRINTHEAD

The StarFire™ SG1024/LA2Ci is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field-proven materials to deliver consistent output over a long service life with continuous ink recirculation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable, and aqueous ink formulations.

Each SG1024/LA2Ci printhead has two separate ink paths each with 512 independent channels arranged in 4 rows in a single nozzle plate for resolutions up to 200 dpi. All 1024 nozzles can be fired.

Features

• Number of addressable Jets per module: 1024
• Print width: 64.96mm (2.55″)
• Native resolution: 200 dpi percolor and interlaced for a 400 dpi swatch
• Native drop size: 80pl
• Largest drop size: 200pl
• VersaDrop™ max productivity: 1500ng-kHz with drop sizes between 80 & 200ng
• Fire frequency: Up to 20 kHz
• Inkjet operating temperature range: Up to 50°C (122°F)
• Nozzle Plate technology: Metal
• Printhead heat type: Integrated heater, thermal transfer
• OEM accessible non-volatile memory: 64 bytes rewriteable
• Integral temperature sensor: Integrated
• Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)
• Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
